Hikvision DS-2CD2387G2P-LSU/SL 8MP Panoramic ColorVu IP Camera | 24/7 Full-Color Security

The Hikvision DS-2CD2387G2P-LSU/SL is a state-of-the-art 8MP Panoramic Fixed Turret IP Camera featuring 24/7 full-color imaging, smart human/vehicle detection, and an active deterrence system. Designed for large-scale surveillance, it provides unmatched clarity and coverage.

Key Features:

• High-quality imaging with 8 MP resolution.

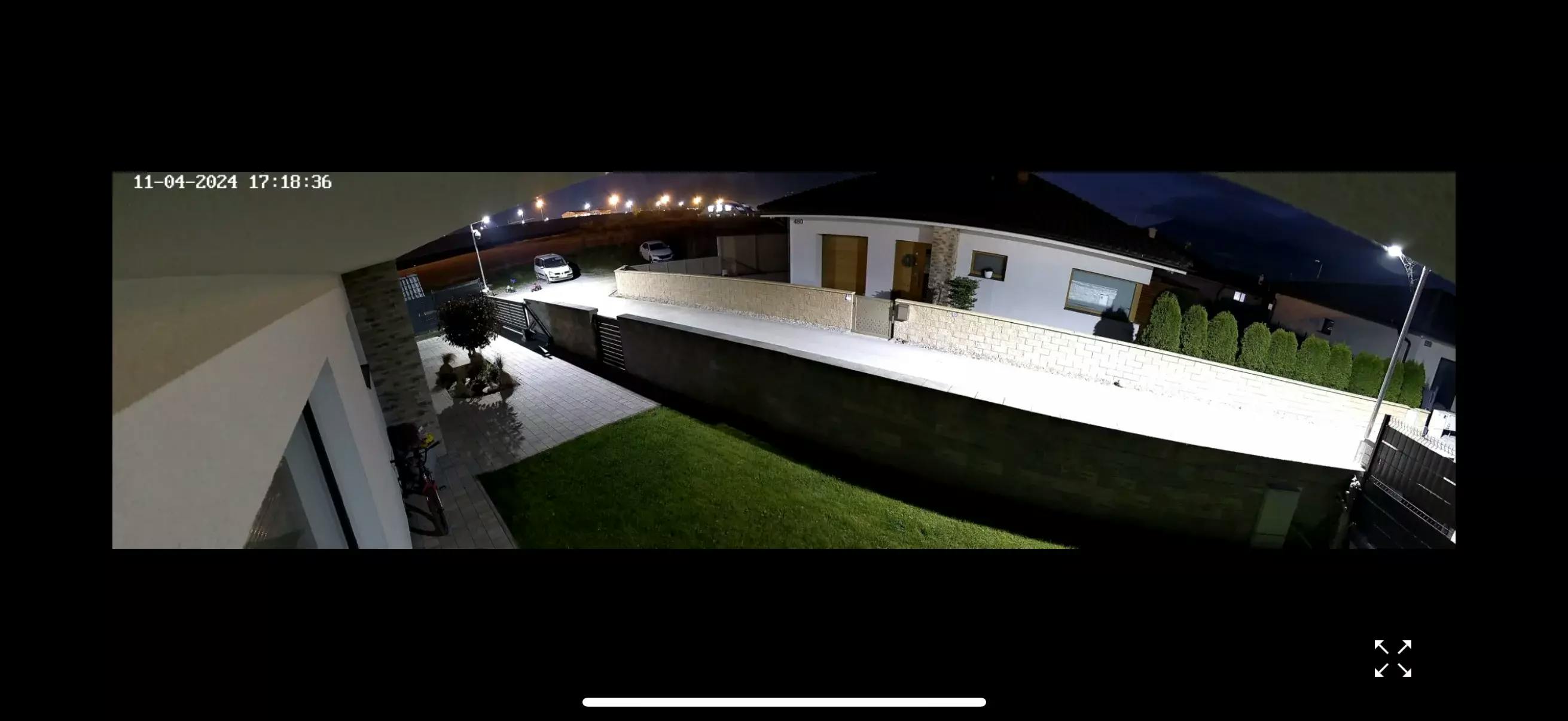

• 24/7 colorful imaging with ColorVu technology.
• Efficient H.265+ compression technology.
• Clear imaging under strong backlight with 130 dB WDR.
• Focus on human and vehicle classification using deep learning.
• Active strobe light and audio alarm for intrusion warnings.
• Water and dust resistance (IP67).

Camera Specifications:

• Image Sensor: 2 × 1/1.8" Progressive Scan CMOS.
• Max. Resolution: 5120 × 1440.
• Min. Illumination:
  • Color: 0.0005 Lux @ (F1.0, AGC ON).
  • 0 Lux with light.
• Shutter Time: 1/3 s to 1/100,000 s.
• Angle Adjustment:
  • Pan: -30° to 30°.
  • Tilt: -75° to 75°.

Lens Specifications:

• Lens Type: Fixed focal lens, dual lens (4 mm).
• Focal Length & FOV:
  • 4 mm: Horizontal FOV 180°, Vertical FOV 44°.
• Lens Mount: M16.
• Aperture: F1.0.
• Depth of Field: 3.6 m to ∞.

Illuminator:

• Supplement Light Type: White light.
• Range: Up to 30 m.
• Smart Supplement Light: Yes.

Video:

• Main Stream:
  • WDR On: 50 Hz: 12.5 fps, 60 Hz: 15 fps (5120 × 1440).
  • WDR Off: 50 Hz: 20 fps, 60 Hz: 20 fps (5120 × 1440).
• Sub-Stream:
  • WDR On: 50 Hz: 12.5 fps, 60 Hz: 15 fps (1920 × 536).
  • WDR Off: 50 Hz: 20 fps, 60 Hz: 20 fps (1920 × 536).
• Compression: H.265+/H.265/H.264+/H.264.

Audio:

• Built-in microphone and speaker.
• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC.
• Noise Filtering: Yes.

Network:

• Protocols: TCP/IP, HTTP/HTTPS, RTP, RTSP, NTP, IPv6, etc.
• User Management: Up to 32 users with multiple levels.
• Security Features: Password protection, HTTPS encryption, IP address filtering, etc.

Storage:

• On-board memory card slot (up to 256 GB).
• Supports NAS and NVR storage.

Smart Functions:

• Basic Events: Motion detection, alarm triggering for human/vehicle targets.
• Smart Events: Line crossing, intrusion, region entrance/exit detection.
• Linkage Actions: Trigger recording, alarm outputs, white light flashing, etc.

General Features:

• Power Supply: 12 VDC ± 25% or PoE.
• Material: Metal base and cover.
• Dimensions: Ø155 mm × 155.3 mm.
• Operating Conditions: -30 °C to 60 °C, 95% humidity (non-condensing).
• Language Support: 33 languages.

Approvals and Certifications:

• EMC: FCC, CE-EMC, RCM, IC.
• Safety: UL, CB, CE-LVD.
• Environmental Compliance: CE-RoHS, WEEE, Reach.
• Protection: IP67-certified for dust and water resistance.
